Master Data Exploration with Parallel Coordinates
Parallel coordinate graphs offer a unique way to visualize high-dimensional data. They represent each data point as a line that intersects vertical axes, one for each dimension. This allows for quick identification of correlations and patterns across multiple variables, making them ideal for exploratory data analysis. Applications range from identifying similar data points to understanding relationships between variables. Their effectiveness lies in simplifying complex datasets, allowing for easy comparison and pattern recognition. The visual representation aids in making informed decisions based on data insights.
<html>
<head>
<!-- Include the CanvasXpress library in your HTML file -->
<link rel="stylesheet" href="https://www.canvasxpress.org/dist/canvasXpress.css" type="text/css"/>
<script src="https://www.canvasxpress.org/dist/canvasXpress.min.js"></script>
</head>
<body>
<!-- Create a canvas element for the chart with the desired dimensions -->
<div>
<canvas id="canvasId" width="600" height="600"></canvas>
</div>
<!-- Create a script to initialize the chart -->
<script>
// Use a data frame (2D-array) for the graph
var data = [
[ "Id", "Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width", "Species"],
[ "s1", 5.1, 3.5, 1.4, 0.2, "setosa"],
[ "s2", 4.9, 3, 1.4, 0.2, "setosa"],
[ "s3", 4.7, 3.2, 1.3, 0.2, "setosa"],
[ "s4", 4.6, 3.1, 1.5, 0.2, "setosa"],
[ "s5", 5, 3.6, 1.4, 0.2, "setosa"],
[ "s6", 5.4, 3.9, 1.7, 0.4, "setosa"],
[ "s7", 4.6, 3.4, 1.4, 0.3, "setosa"],
[ "s8", 5, 3.4, 1.5, 0.2, "setosa"],
[ "s9", 4.4, 2.9, 1.4, 0.2, "setosa"],
[ "s10", 4.9, 3.1, 1.5, 0.1, "setosa"],
[ "s11", 5.4, 3.7, 1.5, 0.2, "setosa"],
[ "s12", 4.8, 3.4, 1.6, 0.2, "setosa"],
[ "s13", 4.8, 3, 1.4, 0.1, "setosa"],
[ "s14", 4.3, 3, 1.1, 0.1, "setosa"],
[ "s15", 5.8, 4, 1.2, 0.2, "setosa"],
[ "s16", 5.7, 4.4, 1.5, 0.4, "setosa"],
[ "s17", 5.4, 3.9, 1.3, 0.4, "setosa"],
[ "s18", 5.1, 3.5, 1.4, 0.3, "setosa"],
[ "s19", 5.7, 3.8, 1.7, 0.3, "setosa"],
[ "s20", 5.1, 3.8, 1.5, 0.3, "setosa"],
[ "s21", 5.4, 3.4, 1.7, 0.2, "setosa"],
[ "s22", 5.1, 3.7, 1.5, 0.4, "setosa"],
[ "s23", 4.6, 3.6, 1, 0.2, "setosa"],
[ "s24", 5.1, 3.3, 1.7, 0.5, "setosa"],
[ "s25", 4.8, 3.4, 1.9, 0.2, "setosa"],
[ "s26", 5, 3, 1.6, 0.2, "setosa"],
[ "s27", 5, 3.4, 1.6, 0.4, "setosa"],
[ "s28", 5.2, 3.5, 1.5, 0.2, "setosa"],
// ... (data truncated after 29 records for clarity)
]
// Create the configuration for the graph

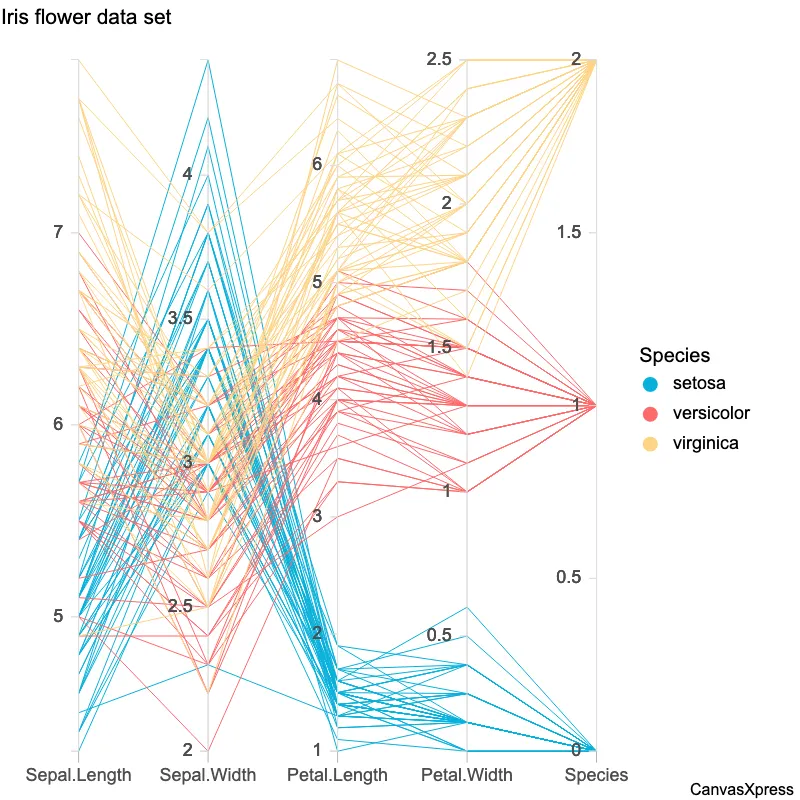

var config = {
"colorBy": "Species",
"graphOrientation": "vertical",
"graphType": "ParallelCoordinates",
"lineDecoration": false,
"showTransition": false,
"smpTextRotate": 90,
"title": "Iris flower data set",
"xAxis": ["s1", "s2", "s3", "s4", "s5", "s6", "s7", "s8", "s9", "s10", "s11", "s12", "s13", "s14", "s15", "s16", "s17", "s18", "s19", "s20", "s21", "s22", "s23", "s24", "s25", "s26", "s27", "s28", "s29", "s30", "s31", "s32", "s33", "s34", "s35", "s36", "s37", "s38", "s39", "s40", "s41", "s42", "s43", "s44", "s45", "s46", "s47", "s48", "s49", "s50", "s51", "s52", "s53", "s54", "s55", "s56", "s57", "s58", "s59", "s60", "s61", "s62", "s63", "s64", "s65", "s66", "s67", "s68", "s69", "s70", "s71", "s72", "s73", "s74", "s75", "s76", "s77", "s78", "s79", "s80", "s81", "s82", "s83", "s84", "s85", "s86", "s87", "s88", "s89", "s90", "s91", "s92", "s93", "s94", "s95", "s96", "s97", "s98", "s99", "s100", "s101", "s102", "s103", "s104", "s105", "s106", "s107", "s108", "s109", "s110", "s111", "s112", "s113", "s114", "s115", "s116", "s117", "s118", "s119", "s120", "s121", "s122", "s123", "s124", "s125", "s126", "s127", "s128", "s129", "s130", "s131", "s132", "s133", "s134", "s135", "s136", "s137", "s138", "s139", "s140", "s141", "s142", "s143", "s144", "s145", "s146", "s147", "s148", "s149", "s150"]
}
// Event used to create graph (optional)
var events = false
// Call the CanvasXpress function to create the graph
var cX = new CanvasXpress("canvasId", data, config, events);
</script>
</body>
</html>
<html>
<head>
<!-- Include the CanvasXpress library in your HTML file -->
<link rel="stylesheet" href="https://www.canvasxpress.org/dist/canvasXpress.css" type="text/css"/>
<script src="https://www.canvasxpress.org/dist/canvasXpress.min.js"></script>
</head>
<body>
<!-- Create a canvas element for the chart with the desired dimensions -->
<div>
<canvas id="canvasId" width="600" height="600"></canvas>
</div>
<!-- Create a script to initialize the chart -->
<script>
// Create the data for the graph
var data = {
"y" : {
"data" : [
[5.1,3.5,1.4,0.2],[4.9,3,1.4,0.2],[4.7,3.2,1.3,0.2],[4.6,3.1,1.5,0.2],[5,3.6,1.4,0.2],[5.4,3.9,1.7,0.4],[4.6,3.4,1.4,0.3],[5,3.4,1.5,0.2],[4.4,2.9,1.4,0.2],[4.9,3.1,1.5,0.1],[5.4,3.7,1.5,0.2],[4.8,3.4,1.6,0.2],[4.8,3,1.4,0.1],[4.3,3,1.1,0.1],[5.8,4,1.2,0.2],[5.7,4.4,1.5,0.4],[5.4,3.9,1.3,0.4],[5.1,3.5,1.4,0.3],[5.7,3.8,1.7,0.3],[5.1,3.8,1.5,0.3],[5.4,3.4,1.7,0.2],[5.1,3.7,1.5,0.4],[4.6,3.6,1,0.2],[5.1,3.3,1.7,0.5],[4.8,3.4,1.9,0.2],[5,3,1.6,0.2],[5,3.4,1.6,0.4],[5.2,3.5,1.5,0.2],[5.2,3.4,1.4,0.2],[4.7,3.2,1.6,0.2],[4.8,3.1,1.6,0.2],[5.4,3.4,1.5,0.4],[5.2,4.1,1.5,0.1],[5.5,4.2,1.4,0.2],[4.9,3.1,1.5,0.2],[5,3.2,1.2,0.2],[5.5,3.5,1.3,0.2],[4.9,3.6,1.4,0.1],[4.4,3,1.3,0.2],[5.1,3.4,1.5,0.2],[5,3.5,1.3,0.3],[4.5,2.3,1.3,0.3],[4.4,3.2,1.3,0.2],[5,3.5,1.6,0.6],[5.1,3.8,1.9,0.4],[4.8,3,1.4,0.3],[5.1,3.8,1.6,0.2],[4.6,3.2,1.4,0.2],[5.3,3.7,1.5,0.2],[5,3.3,1.4,0.2],[7,3.2,4.7,1.4],[6.4,3.2,4.5,1.5],[6.9,3.1,4.9,1.5],[5.5,2.3,4,1.3],[6.5,2.8,4.6,1.5],[5.7,2.8,4.5,1.3],[6.3,3.3,4.7,1.6],[4.9,2.4,3.3,1],[6.6,2.9,4.6,1.3],[5.2,2.7,3.9,1.4],[5,2,3.5,1],[5.9,3,4.2,1.5],[6,2.2,4,1],[6.1,2.9,4.7,1.4],[5.6,2.9,3.6,1.3],[6.7,3.1,4.4,1.4],[5.6,3,4.5,1.5],[5.8,2.7,4.1,1],[6.2,2.2,4.5,1.5],[5.6,2.5,3.9,1.1],[5.9,3.2,4.8,1.8],[6.1,2.8,4,1.3],[6.3,2.5,4.9,1.5],[6.1,2.8,4.7,1.2],[6.4,2.9,4.3,1.3],[6.6,3,4.4,1.4],[6.8,2.8,4.8,1.4],[6.7,3,5,1.7],[6,2.9,4.5,1.5],[5.7,2.6,3.5,1],[5.5,2.4,3.8,1.1],[5.5,2.4,3.7,1],[5.8,2.7,3.9,1.2],[6,2.7,5.1,1.6],[5.4,3,4.5,1.5],[6,3.4,4.5,1.6],[6.7,3.1,4.7,1.5],[6.3,2.3,4.4,1.3],[5.6,3,4.1,1.3],[5.5,2.5,4,1.3],[5.5,2.6,4.4,1.2],[6.1,3,4.6,1.4],[5.8,2.6,4,1.2],[5,2.3,3.3,1],[5.6,2.7,4.2,1.3],[5.7,3,4.2,1.2],[5.7,2.9,4.2,1.3],[6.2,2.9,4.3,1.3],[5.1,2.5,3,1.1],[5.7,2.8,4.1,1.3],[6.3,3.3,6,2.5],[5.8,2.7,5.1,1.9],[7.1,3,5.9,2.1],[6.3,2.9,5.6,1.8],[6.5,3,5.8,2.2],[7.6,3,6.6,2.1],[4.9,2.5,4.5,1.7],[7.3,2.9,6.3,1.8],[6.7,2.5,5.8,1.8],[7.2,3.6,6.1,2.5],[6.5,3.2,5.1,2],[6.4,2.7,5.3,1.9],[6.8,3,5.5,2.1],[5.7,2.5,5,2],[5.8,2.8,5.1,2.4],[6.4,3.2,5.3,2.3],[6.5,3,5.5,1.8],[7.7,3.8,6.7,2.2],[7.7,2.6,6.9,2.3],[6,2.2,5,1.5],[6.9,3.2,5.7,2.3],[5.6,2.8,4.9,2],[7.7,2.8,6.7,2],[6.3,2.7,4.9,1.8],[6.7,3.3,5.7,2.1],[7.2,3.2,6,1.8],[6.2,2.8,4.8,1.8],[6.1,3,4.9,1.8],[6.4,2.8,5.6,2.1],[7.2,3,5.8,1.6],[7.4,2.8,6.1,1.9],[7.9,3.8,6.4,2],[6.4,2.8,5.6,2.2],[6.3,2.8,5.1,1.5],[6.1,2.6,5.6,1.4],[7.7,3,6.1,2.3],[6.3,3.4,5.6,2.4],[6.4,3.1,5.5,1.8],[6,3,4.8,1.8],[6.9,3.1,5.4,2.1],[6.7,3.1,5.6,2.4],[6.9,3.1,5.1,2.3],[5.8,2.7,5.1,1.9],[6.8,3.2,5.9,2.3],[6.7,3.3,5.7,2.5],[6.7,3,5.2,2.3],[6.3,2.5,5,1.9],[6.5,3,5.2,2],[6.2,3.4,5.4,2.3],[5.9,3,5.1,1.8]
],
"smps" : ["Sepal.Length","Sepal.Width","Petal.Length","Petal.Width"],
"vars" : ["s1","s2","s3","s4","s5","s6","s7","s8","s9","s10","s11","s12","s13","s14","s15","s16","s17","s18","s19","s20","s21","s22","s23","s24","s25","s26","s27","s28","s29","s30","s31","s32","s33","s34","s35","s36","s37","s38","s39","s40","s41","s42","s43","s44","s45","s46","s47","s48","s49","s50","s51","s52","s53","s54","s55","s56","s57","s58","s59","s60","s61","s62","s63","s64","s65","s66","s67","s68","s69","s70","s71","s72","s73","s74","s75","s76","s77","s78","s79","s80","s81","s82","s83","s84","s85","s86","s87","s88","s89","s90","s91","s92","s93","s94","s95","s96","s97","s98","s99","s100","s101","s102","s103","s104","s105","s106","s107","s108","s109","s110","s111","s112","s113","s114","s115","s116","s117","s118","s119","s120","s121","s122","s123","s124","s125","s126","s127","s128","s129","s130","s131","s132","s133","s134","s135","s136","s137","s138","s139","s140","s141","s142","s143","s144","s145","s146","s147","s148","s149","s150"]
},
"z" : {
"Species" : ["setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","setosa","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","versicolor","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica","virginica"]
}
}
// Create the configuration for the graph

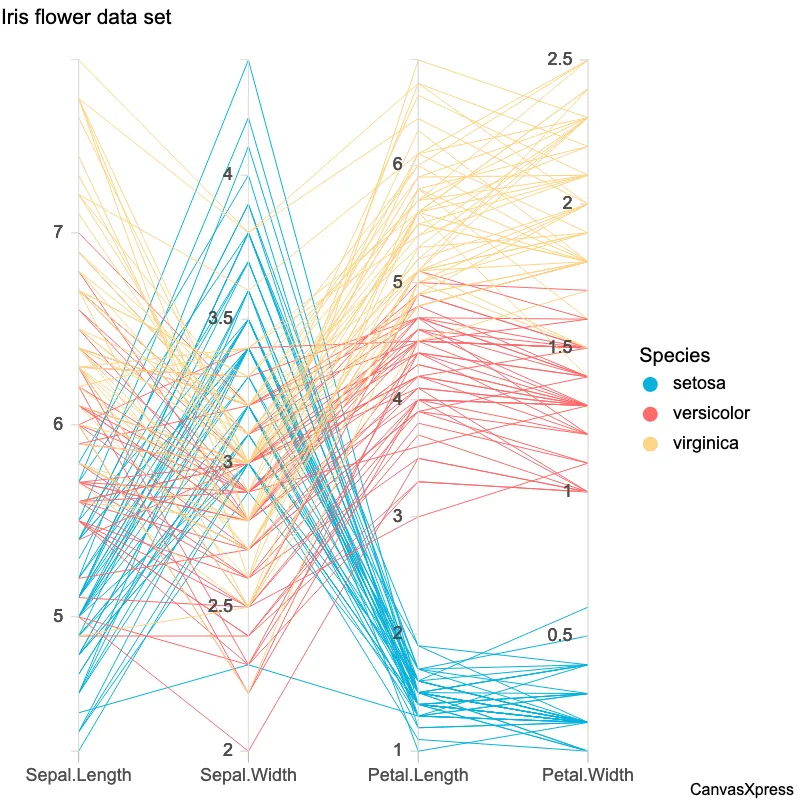

var config = {
"colorBy": "Species",
"graphOrientation": "vertical",
"graphType": "ParallelCoordinates",
"lineDecoration": false,
"showTransition": false,
"smpTextRotate": 90,
"title": "Iris flower data set",
"xAxis": ["s1", "s2", "s3", "s4", "s5", "s6", "s7", "s8", "s9", "s10", "s11", "s12", "s13", "s14", "s15", "s16", "s17", "s18", "s19", "s20", "s21", "s22", "s23", "s24", "s25", "s26", "s27", "s28", "s29", "s30", "s31", "s32", "s33", "s34", "s35", "s36", "s37", "s38", "s39", "s40", "s41", "s42", "s43", "s44", "s45", "s46", "s47", "s48", "s49", "s50", "s51", "s52", "s53", "s54", "s55", "s56", "s57", "s58", "s59", "s60", "s61", "s62", "s63", "s64", "s65", "s66", "s67", "s68", "s69", "s70", "s71", "s72", "s73", "s74", "s75", "s76", "s77", "s78", "s79", "s80", "s81", "s82", "s83", "s84", "s85", "s86", "s87", "s88", "s89", "s90", "s91", "s92", "s93", "s94", "s95", "s96", "s97", "s98", "s99", "s100", "s101", "s102", "s103", "s104", "s105", "s106", "s107", "s108", "s109", "s110", "s111", "s112", "s113", "s114", "s115", "s116", "s117", "s118", "s119", "s120", "s121", "s122", "s123", "s124", "s125", "s126", "s127", "s128", "s129", "s130", "s131", "s132", "s133", "s134", "s135", "s136", "s137", "s138", "s139", "s140", "s141", "s142", "s143", "s144", "s145", "s146", "s147", "s148", "s149", "s150"]
}
// Event used to create graph (optional)
var events = false
// Call the CanvasXpress function to create the graph
var cX = new CanvasXpress("canvasId", data, config, events);
</script>
</body>
</html>
library(canvasXpress)
y=read.table("https://www.canvasxpress.org/data/r/cX-irist-dat.txt", header=TRUE, sep="\t", quote="", row.names=1, fill=TRUE, check.names=FALSE, stringsAsFactors=FALSE)
z=read.table("https://www.canvasxpress.org/data/r/cX-irist-var.txt", header=TRUE, sep="\t", quote="", row.names=1, fill=TRUE, check.names=FALSE, stringsAsFactors=FALSE)
canvasXpress(
data=y,
varAnnot=z,
colorBy="Species",
graphOrientation="vertical",
graphType="ParallelCoordinates",
lineDecoration=FALSE,
showTransition=FALSE,
smpTextRotate=90,
title="Iris flower data set",
xAxis=list("s1", "s2", "s3", "s4", "s5", "s6", "s7", "s8", "s9", "s10", "s11", "s12", "s13", "s14", "s15", "s16", "s17", "s18", "s19", "s20", "s21", "s22", "s23", "s24", "s25", "s26", "s27", "s28", "s29", "s30", "s31", "s32", "s33", "s34", "s35", "s36", "s37", "s38", "s39", "s40", "s41", "s42", "s43", "s44", "s45", "s46", "s47", "s48", "s49", "s50", "s51", "s52", "s53", "s54", "s55", "s56", "s57", "s58", "s59", "s60", "s61", "s62", "s63", "s64", "s65", "s66", "s67", "s68", "s69", "s70", "s71", "s72", "s73", "s74", "s75", "s76", "s77", "s78", "s79", "s80", "s81", "s82", "s83", "s84", "s85", "s86", "s87", "s88", "s89", "s90", "s91", "s92", "s93", "s94", "s95", "s96", "s97", "s98", "s99", "s100", "s101", "s102", "s103", "s104", "s105", "s106", "s107", "s108", "s109", "s110", "s111", "s112", "s113", "s114", "s115", "s116", "s117", "s118", "s119", "s120", "s121", "s122", "s123", "s124", "s125", "s126", "s127", "s128", "s129", "s130", "s131", "s132", "s133", "s134", "s135", "s136", "s137", "s138", "s139", "s140", "s141", "s142", "s143", "s144", "s145", "s146", "s147", "s148", "s149", "s150")
)
