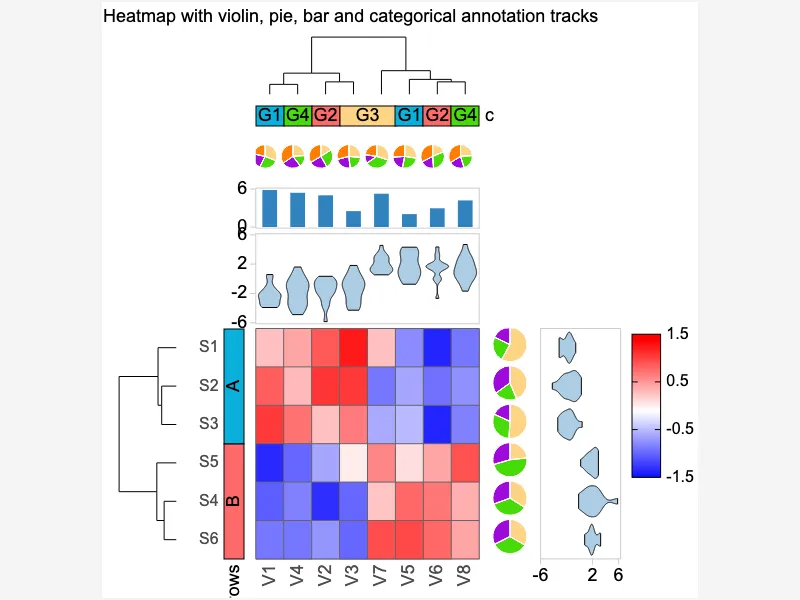

Clustered Heatmap with Multiple Annotation Tracks

library(canvasXpress)
y=read.table("https://www.canvasxpress.org/data/r/cX-heatmap20-dat.txt", header=TRUE, sep="\t", quote="", row.names=1, fill=TRUE, check.names=FALSE, stringsAsFactors=FALSE)
x=read.table("https://www.canvasxpress.org/data/r/cX-heatmap20-smp.txt", header=TRUE, sep="\t", quote="", row.names=1, fill=TRUE, check.names=FALSE, stringsAsFactors=FALSE)
z=read.table("https://www.canvasxpress.org/data/r/cX-heatmap20-var.txt", header=TRUE, sep="\t", quote="", row.names=1, fill=TRUE, check.names=FALSE, stringsAsFactors=FALSE)
canvasXpress(
data=y,
smpAnnot=x,
varAnnot=z,
colorSpectrum=list("blue", "white", "red"),
graphType="Heatmap",
samplesClustered=TRUE,
showSmpDendrogram=TRUE,
showVarDendrogram=TRUE,
smpOverlayProperties=list(rows=list(position="left", showLegend="True", thickness=20, type="Default"), rp_a=list(hideName="True", position="right", showLegend="True", thickness=50, type="Pie"), rp_b=list(hideName="True", position="right", showLegend="True", thickness=50, type="Pie"), rp_c=list(hideName="True", position="right", showLegend="True", thickness=50, type="Pie"), rv_01=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_02=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_03=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_04=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_05=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_06=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_07=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_08=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_09=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_10=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_11=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin"), rv_12=list(color="rgb(49,130,189)", hideName="True", position="right", thickness=80, type="Violin")),
smpOverlays=list("rows", "-", "rp_a", "rp_b", "rp_c", "-", "rv_01", "rv_02", "rv_03", "rv_04", "rv_05", "rv_06", "rv_07", "rv_08", "rv_09", "rv_10", "rv_11", "rv_12"),
title="Heatmap with violin, pie, bar and categorical annotation tracks",
varOverlayProperties=list(F1_01=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_02=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_03=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_04=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_05=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_06=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_07=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_08=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_09=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_10=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_11=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_12=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_13=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_14=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_15=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), F1_16=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=90, type="Violin"), c=list(position="top", showLegend="True", thickness=20, type="Default"), p1_a=list(hideName="True", position="top", showLegend="True", thickness=50, type="Pie"), p1_b=list(hideName="True", position="top", showLegend="True", thickness=50, type="Pie"), p1_c=list(hideName="True", position="top", showLegend="True", thickness=50, type="Pie"), p1_d=list(hideName="True", position="top", showLegend="True", thickness=50, type="Pie"), p2=list(color="rgb(49,130,189)", hideName="True", position="top", thickness=40, type="Bar")),
varOverlays=list("c", "-", "p1_a", "p1_b", "p1_c", "p1_d", "-", "p2", "-", "F1_01", "F1_02", "F1_03", "F1_04", "F1_05", "F1_06", "F1_07", "F1_08", "F1_09", "F1_10", "F1_11", "F1_12", "F1_13", "F1_14", "F1_15", "F1_16"),
variablesClustered=TRUE
)

from canvasxpress.canvas import CanvasXpress
from canvasxpress.plot import show_in_browser

if __name__ == "__main__":
  # Define the chart with its data and configuration
  chart: CanvasXpress = CanvasXpress(
    render_to = "heatmap20",
    data = {
      "y": {
        "vars": ["V1", "V2", "V3", "V4", "V5", "V6", "V7", "V8"],
        "smps": ["S1", "S2", "S3", "S4", "S5", "S6"],
        "data": [
          [0.372, 0.932, 1.148, -0.98, -1.265, -0.823],
          [0.967, 1.184, 0.374, -1.253, -0.553, -0.634],
          [1.337, 1.144, 0.764, -0.896, 0.1, -0.901],
          [0.525, 0.402, 0.833, -0.749, -0.921, -0.822],
          [-0.704, -0.558, -0.416, 0.873, 0.174, 1.046],
          [-1.297, -0.86, -1.316, 0.801, 0.528, 0.875],
          [0.355, -0.817, -0.505, 0.337, 0.699, 1.032],
          [-0.832, -0.67, -0.764, 0.448, 0.997, 0.516]
        ]
      },
      "x": {
        "rows": ["A", "A", "A", "B", "B", "B"],
        "rp_a": [4.26, 6.33, 5.29, 3.14, 2.6, 3.06],
        "rp_b": [1.77, 3.1, 3.22, 3.28, 5.27, 3.15],
        "rp_c": [1.31, 5.08, 1.89, 2.83, 3.3, 2.98],
        "rv_01": [-3.1, -2.27, 0.4, 1.33, 1.85, 3.24],
        "rv_02": [-1.18, -1.16, -1.05, -0.16, 1.05, 2.14],
        "rv_03": [-1.45, -0.58, -1.48, 1.74, 2.04, 1.77],
        "rv_04": [-1.73, -1.26, -2.37, 1.11, 1.06, 3.21],
        "rv_05": [-0.59, -0.91, -1.06, 2.92, 2.0, 2.73],
        "rv_06": [-3.16, -2.22, -2.81, 2.8, 1.36, 1.88],
        "rv_07": [-1.56, -0.51, -2.87, 0.97, 2.9, 0.78],
        "rv_08": [-1.5, -2.63, -2.12, -0.0, 2.78, 1.45],
        "rv_09": [-2.99, 0.28, -1.22, 5.86, 2.45, 1.62],
        "rv_10": [-1.88, -0.23, -2.03, 2.5, 2.57, 1.0],
        "rv_11": [-1.86, -2.55, -3.37, 2.96, 2.73, 2.08],
        "rv_12": [-3.0, -4.21, -1.47, 1.89, 0.15, 1.93]
      },
      "z": {
        "c": ["G1", "G2", "G3", "G4", "G1", "G2", "G3", "G4"],
        "p1_a": [6.31, 2.74, 4.53, 3.5, 4.93, 2.6, 5.0, 3.31],
        "p1_b": [5.39, 4.44, 3.71, 2.33, 4.65, 4.2, 5.96, 2.93],
        "p1_c": [4.33, 4.26, 3.92, 3.81, 3.77, 2.6, 1.98, 2.91],
        "p1_d": [4.39, 5.77, 4.97, 5.08, 4.67, 4.55, 3.78, 4.66],
        "p2": [5.85, 5.02, 2.52, 5.42, 2.05, 2.97, 5.27, 4.21],
        "F1_01": [0.58, 0.06, -1.79, -0.19, 1.01, 2.9, 3.04, 1.82],
        "F1_02": [-3.23, -5.86, -0.41, 0.63, 4.33, -0.25, 1.59, 2.7],
        "F1_03": [0.21, 0.36, -0.75, -0.76, -0.6, 1.83, 0.98, 0.97],
        "F1_04": [-2.13, -2.53, -3.98, -0.35, 3.83, 1.75, 1.78, 0.78],
        "F1_05": [-3.51, -1.62, -3.59, 1.63, 3.1, 1.56, 2.67, -0.88],
        "F1_06": [-3.61, -1.7, -0.11, -4.27, 0.48, 1.48, 1.8, 0.34],
        "F1_07": [-3.03, -0.61, 1.83, -1.21, 3.78, 1.86, 1.21, 1.33],
        "F1_08": [-2.05, -1.85, -0.82, -3.71, -0.76, 3.44, 1.03, 4.69],
        "F1_09": [-1.03, -0.16, 0.28, -4.91, 1.6, -2.68, 1.44, 2.58],
        "F1_10": [-1.37, -2.03, -1.46, -1.28, 1.79, 1.13, 1.21, 1.29],
        "F1_11": [-2.19, -0.67, -3.03, -2.75, 0.47, 0.12, 3.1, -1.69],
        "F1_12": [-2.29, -1.09, -3.08, -3.09, 0.91, 0.05, 0.53, 3.17],
        "F1_13": [-2.71, -0.87, 1.21, -3.62, 3.92, 1.79, 0.68, 0.29],
        "F1_14": [-3.92, -3.66, -4.29, -0.76, 3.09, 1.94, 4.57, 2.55],
        "F1_15": [-3.87, -0.2, -1.5, -1.55, -0.15, 1.5, 2.93, -0.16],
        "F1_16": [-2.12, -3.54, -0.48, -3.15, 1.61, 4.35, 2.97, 0.45]
      }
    },
    config = {
      "graphType": "Heatmap",
      "samplesClustered": True,
      "variablesClustered": True,
      "colorSpectrum": ["blue", "white", "red"],
      "varOverlays": ["c", "-", "p1_a", "p1_b", "p1_c", "p1_d", "-", "p2", "-", "F1_01", "F1_02", "F1_03", "F1_04", "F1_05", "F1_06", "F1_07", "F1_08", "F1_09", "F1_10", "F1_11", "F1_12", "F1_13", "F1_14", "F1_15", "F1_16"],
      "varOverlayProperties": {
        "c": {
          "type": "Default",
          "position": "top",
          "showLegend": True,
          "thickness": 20
        },
        "p1_a": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_b": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_c": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_d": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p2": {
          "type": "Bar",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 40,
          "hideName": True
        },
        "F1_01": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_02": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_03": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_04": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_05": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_06": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_07": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_08": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_09": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_10": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_11": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_12": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_13": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_14": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_15": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_16": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        }
      },
      "smpOverlays": ["rows", "-", "rp_a", "rp_b", "rp_c", "-", "rv_01", "rv_02", "rv_03", "rv_04", "rv_05", "rv_06", "rv_07", "rv_08", "rv_09", "rv_10", "rv_11", "rv_12"],
      "smpOverlayProperties": {
        "rows": {
          "type": "Default",
          "position": "left",
          "showLegend": True,
          "thickness": 20
        },
        "rp_a": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rp_b": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rp_c": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rv_01": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_02": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_03": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_04": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_05": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_06": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_07": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_08": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_09": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_10": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_11": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_12": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        }
      },
      "showSmpDendrogram": True,
      "showVarDendrogram": True,
      "title": "Heatmap with violin, pie, bar and categorical annotation tracks"
    },
    width = 600,
    height = 600
  )

  # Display the chart in its own Web page
  show_in_browser(chart)

Run this notebook:

from canvasxpress.canvas import CanvasXpress
from canvasxpress.plot import graph

graph(
  CanvasXpress(
    render_to = "heatmap20",
    data = {
      "y": {
        "vars": ["V1", "V2", "V3", "V4", "V5", "V6", "V7", "V8"],
        "smps": ["S1", "S2", "S3", "S4", "S5", "S6"],
        "data": [
          [0.372, 0.932, 1.148, -0.98, -1.265, -0.823],
          [0.967, 1.184, 0.374, -1.253, -0.553, -0.634],
          [1.337, 1.144, 0.764, -0.896, 0.1, -0.901],
          [0.525, 0.402, 0.833, -0.749, -0.921, -0.822],
          [-0.704, -0.558, -0.416, 0.873, 0.174, 1.046],
          [-1.297, -0.86, -1.316, 0.801, 0.528, 0.875],
          [0.355, -0.817, -0.505, 0.337, 0.699, 1.032],
          [-0.832, -0.67, -0.764, 0.448, 0.997, 0.516]
        ]
      },
      "x": {
        "rows": ["A", "A", "A", "B", "B", "B"],
        "rp_a": [4.26, 6.33, 5.29, 3.14, 2.6, 3.06],
        "rp_b": [1.77, 3.1, 3.22, 3.28, 5.27, 3.15],
        "rp_c": [1.31, 5.08, 1.89, 2.83, 3.3, 2.98],
        "rv_01": [-3.1, -2.27, 0.4, 1.33, 1.85, 3.24],
        "rv_02": [-1.18, -1.16, -1.05, -0.16, 1.05, 2.14],
        "rv_03": [-1.45, -0.58, -1.48, 1.74, 2.04, 1.77],
        "rv_04": [-1.73, -1.26, -2.37, 1.11, 1.06, 3.21],
        "rv_05": [-0.59, -0.91, -1.06, 2.92, 2.0, 2.73],
        "rv_06": [-3.16, -2.22, -2.81, 2.8, 1.36, 1.88],
        "rv_07": [-1.56, -0.51, -2.87, 0.97, 2.9, 0.78],
        "rv_08": [-1.5, -2.63, -2.12, -0.0, 2.78, 1.45],
        "rv_09": [-2.99, 0.28, -1.22, 5.86, 2.45, 1.62],
        "rv_10": [-1.88, -0.23, -2.03, 2.5, 2.57, 1.0],
        "rv_11": [-1.86, -2.55, -3.37, 2.96, 2.73, 2.08],
        "rv_12": [-3.0, -4.21, -1.47, 1.89, 0.15, 1.93]
      },
      "z": {
        "c": ["G1", "G2", "G3", "G4", "G1", "G2", "G3", "G4"],
        "p1_a": [6.31, 2.74, 4.53, 3.5, 4.93, 2.6, 5.0, 3.31],
        "p1_b": [5.39, 4.44, 3.71, 2.33, 4.65, 4.2, 5.96, 2.93],
        "p1_c": [4.33, 4.26, 3.92, 3.81, 3.77, 2.6, 1.98, 2.91],
        "p1_d": [4.39, 5.77, 4.97, 5.08, 4.67, 4.55, 3.78, 4.66],
        "p2": [5.85, 5.02, 2.52, 5.42, 2.05, 2.97, 5.27, 4.21],
        "F1_01": [0.58, 0.06, -1.79, -0.19, 1.01, 2.9, 3.04, 1.82],
        "F1_02": [-3.23, -5.86, -0.41, 0.63, 4.33, -0.25, 1.59, 2.7],
        "F1_03": [0.21, 0.36, -0.75, -0.76, -0.6, 1.83, 0.98, 0.97],
        "F1_04": [-2.13, -2.53, -3.98, -0.35, 3.83, 1.75, 1.78, 0.78],
        "F1_05": [-3.51, -1.62, -3.59, 1.63, 3.1, 1.56, 2.67, -0.88],
        "F1_06": [-3.61, -1.7, -0.11, -4.27, 0.48, 1.48, 1.8, 0.34],
        "F1_07": [-3.03, -0.61, 1.83, -1.21, 3.78, 1.86, 1.21, 1.33],
        "F1_08": [-2.05, -1.85, -0.82, -3.71, -0.76, 3.44, 1.03, 4.69],
        "F1_09": [-1.03, -0.16, 0.28, -4.91, 1.6, -2.68, 1.44, 2.58],
        "F1_10": [-1.37, -2.03, -1.46, -1.28, 1.79, 1.13, 1.21, 1.29],
        "F1_11": [-2.19, -0.67, -3.03, -2.75, 0.47, 0.12, 3.1, -1.69],
        "F1_12": [-2.29, -1.09, -3.08, -3.09, 0.91, 0.05, 0.53, 3.17],
        "F1_13": [-2.71, -0.87, 1.21, -3.62, 3.92, 1.79, 0.68, 0.29],
        "F1_14": [-3.92, -3.66, -4.29, -0.76, 3.09, 1.94, 4.57, 2.55],
        "F1_15": [-3.87, -0.2, -1.5, -1.55, -0.15, 1.5, 2.93, -0.16],
        "F1_16": [-2.12, -3.54, -0.48, -3.15, 1.61, 4.35, 2.97, 0.45]
      }
    },
    config = {
      "graphType": "Heatmap",
      "samplesClustered": True,
      "variablesClustered": True,
      "colorSpectrum": ["blue", "white", "red"],
      "varOverlays": ["c", "-", "p1_a", "p1_b", "p1_c", "p1_d", "-", "p2", "-", "F1_01", "F1_02", "F1_03", "F1_04", "F1_05", "F1_06", "F1_07", "F1_08", "F1_09", "F1_10", "F1_11", "F1_12", "F1_13", "F1_14", "F1_15", "F1_16"],
      "varOverlayProperties": {
        "c": {
          "type": "Default",
          "position": "top",
          "showLegend": True,
          "thickness": 20
        },
        "p1_a": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_b": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_c": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p1_d": {
          "type": "Pie",
          "position": "top",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "p2": {
          "type": "Bar",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 40,
          "hideName": True
        },
        "F1_01": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_02": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_03": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_04": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_05": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_06": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_07": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_08": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_09": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_10": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_11": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_12": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_13": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_14": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_15": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        },
        "F1_16": {
          "type": "Violin",
          "position": "top",
          "color": "rgb(49,130,189)",
          "thickness": 90,
          "hideName": True
        }
      },
      "smpOverlays": ["rows", "-", "rp_a", "rp_b", "rp_c", "-", "rv_01", "rv_02", "rv_03", "rv_04", "rv_05", "rv_06", "rv_07", "rv_08", "rv_09", "rv_10", "rv_11", "rv_12"],
      "smpOverlayProperties": {
        "rows": {
          "type": "Default",
          "position": "left",
          "showLegend": True,
          "thickness": 20
        },
        "rp_a": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rp_b": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rp_c": {
          "type": "Pie",
          "position": "right",
          "showLegend": True,
          "thickness": 50,
          "hideName": True
        },
        "rv_01": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_02": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_03": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_04": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_05": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_06": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_07": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_08": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_09": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_10": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_11": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        },
        "rv_12": {
          "type": "Violin",
          "position": "right",
          "color": "rgb(49,130,189)",
          "thickness": 80,
          "hideName": True
        }
      },
      "showSmpDendrogram": True,
      "showVarDendrogram": True,
      "title": "Heatmap with violin, pie, bar and categorical annotation tracks"
    },
    width = 600,
    height = 600
  )
)

using CanvasXpress

canvasxpress(Dict(
  "y" => Dict(
    "vars" => ["V1", "V2", "V3", "V4", "V5", "V6", "V7", "V8"],
    "smps" => ["S1", "S2", "S3", "S4", "S5", "S6"],
    "data" => [
      [0.372, 0.932, 1.148, -0.98, -1.265, -0.823],
      [0.967, 1.184, 0.374, -1.253, -0.553, -0.634],
      [1.337, 1.144, 0.764, -0.896, 0.1, -0.901],
      [0.525, 0.402, 0.833, -0.749, -0.921, -0.822],
      [-0.704, -0.558, -0.416, 0.873, 0.174, 1.046],
      [-1.297, -0.86, -1.316, 0.801, 0.528, 0.875],
      [0.355, -0.817, -0.505, 0.337, 0.699, 1.032],
      [-0.832, -0.67, -0.764, 0.448, 0.997, 0.516]
    ]
  ),
  "x" => Dict(
    "rows" => ["A", "A", "A", "B", "B", "B"],
    "rp_a" => [4.26, 6.33, 5.29, 3.14, 2.6, 3.06],
    "rp_b" => [1.77, 3.1, 3.22, 3.28, 5.27, 3.15],
    "rp_c" => [1.31, 5.08, 1.89, 2.83, 3.3, 2.98],
    "rv_01" => [-3.1, -2.27, 0.4, 1.33, 1.85, 3.24],
    "rv_02" => [-1.18, -1.16, -1.05, -0.16, 1.05, 2.14],
    "rv_03" => [-1.45, -0.58, -1.48, 1.74, 2.04, 1.77],
    "rv_04" => [-1.73, -1.26, -2.37, 1.11, 1.06, 3.21],
    "rv_05" => [-0.59, -0.91, -1.06, 2.92, 2.0, 2.73],
    "rv_06" => [-3.16, -2.22, -2.81, 2.8, 1.36, 1.88],
    "rv_07" => [-1.56, -0.51, -2.87, 0.97, 2.9, 0.78],
    "rv_08" => [-1.5, -2.63, -2.12, -0.0, 2.78, 1.45],
    "rv_09" => [-2.99, 0.28, -1.22, 5.86, 2.45, 1.62],
    "rv_10" => [-1.88, -0.23, -2.03, 2.5, 2.57, 1.0],
    "rv_11" => [-1.86, -2.55, -3.37, 2.96, 2.73, 2.08],
    "rv_12" => [-3.0, -4.21, -1.47, 1.89, 0.15, 1.93]
  ),
  "z" => Dict(
    "c" => ["G1", "G2", "G3", "G4", "G1", "G2", "G3", "G4"],
    "p1_a" => [6.31, 2.74, 4.53, 3.5, 4.93, 2.6, 5.0, 3.31],
    "p1_b" => [5.39, 4.44, 3.71, 2.33, 4.65, 4.2, 5.96, 2.93],
    "p1_c" => [4.33, 4.26, 3.92, 3.81, 3.77, 2.6, 1.98, 2.91],
    "p1_d" => [4.39, 5.77, 4.97, 5.08, 4.67, 4.55, 3.78, 4.66],
    "p2" => [5.85, 5.02, 2.52, 5.42, 2.05, 2.97, 5.27, 4.21],
    "F1_01" => [0.58, 0.06, -1.79, -0.19, 1.01, 2.9, 3.04, 1.82],
    "F1_02" => [-3.23, -5.86, -0.41, 0.63, 4.33, -0.25, 1.59, 2.7],
    "F1_03" => [0.21, 0.36, -0.75, -0.76, -0.6, 1.83, 0.98, 0.97],
    "F1_04" => [-2.13, -2.53, -3.98, -0.35, 3.83, 1.75, 1.78, 0.78],
    "F1_05" => [-3.51, -1.62, -3.59, 1.63, 3.1, 1.56, 2.67, -0.88],
    "F1_06" => [-3.61, -1.7, -0.11, -4.27, 0.48, 1.48, 1.8, 0.34],
    "F1_07" => [-3.03, -0.61, 1.83, -1.21, 3.78, 1.86, 1.21, 1.33],
    "F1_08" => [-2.05, -1.85, -0.82, -3.71, -0.76, 3.44, 1.03, 4.69],
    "F1_09" => [-1.03, -0.16, 0.28, -4.91, 1.6, -2.68, 1.44, 2.58],
    "F1_10" => [-1.37, -2.03, -1.46, -1.28, 1.79, 1.13, 1.21, 1.29],
    "F1_11" => [-2.19, -0.67, -3.03, -2.75, 0.47, 0.12, 3.1, -1.69],
    "F1_12" => [-2.29, -1.09, -3.08, -3.09, 0.91, 0.05, 0.53, 3.17],
    "F1_13" => [-2.71, -0.87, 1.21, -3.62, 3.92, 1.79, 0.68, 0.29],
    "F1_14" => [-3.92, -3.66, -4.29, -0.76, 3.09, 1.94, 4.57, 2.55],
    "F1_15" => [-3.87, -0.2, -1.5, -1.55, -0.15, 1.5, 2.93, -0.16],
    "F1_16" => [-2.12, -3.54, -0.48, -3.15, 1.61, 4.35, 2.97, 0.45]
  )
);
  graphType = "Heatmap",
  samplesClustered = true,
  variablesClustered = true,
  colorSpectrum = ["blue", "white", "red"],
  varOverlays = ["c", "-", "p1_a", "p1_b", "p1_c", "p1_d", "-", "p2", "-", "F1_01", "F1_02", "F1_03", "F1_04", "F1_05", "F1_06", "F1_07", "F1_08", "F1_09", "F1_10", "F1_11", "F1_12", "F1_13", "F1_14", "F1_15", "F1_16"],
  varOverlayProperties = Dict(
    "c" => Dict(
      "type" => "Default",
      "position" => "top",
      "showLegend" => true,
      "thickness" => 20
    ),
    "p1_a" => Dict(
      "type" => "Pie",
      "position" => "top",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "p1_b" => Dict(
      "type" => "Pie",
      "position" => "top",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "p1_c" => Dict(
      "type" => "Pie",
      "position" => "top",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "p1_d" => Dict(
      "type" => "Pie",
      "position" => "top",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "p2" => Dict(
      "type" => "Bar",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 40,
      "hideName" => true
    ),
    "F1_01" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_02" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_03" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_04" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_05" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_06" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_07" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_08" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_09" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_10" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_11" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_12" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_13" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_14" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_15" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    ),
    "F1_16" => Dict(
      "type" => "Violin",
      "position" => "top",
      "color" => "rgb(49,130,189)",
      "thickness" => 90,
      "hideName" => true
    )
  ),
  smpOverlays = ["rows", "-", "rp_a", "rp_b", "rp_c", "-", "rv_01", "rv_02", "rv_03", "rv_04", "rv_05", "rv_06", "rv_07", "rv_08", "rv_09", "rv_10", "rv_11", "rv_12"],
  smpOverlayProperties = Dict(
    "rows" => Dict(
      "type" => "Default",
      "position" => "left",
      "showLegend" => true,
      "thickness" => 20
    ),
    "rp_a" => Dict(
      "type" => "Pie",
      "position" => "right",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "rp_b" => Dict(
      "type" => "Pie",
      "position" => "right",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "rp_c" => Dict(
      "type" => "Pie",
      "position" => "right",
      "showLegend" => true,
      "thickness" => 50,
      "hideName" => true
    ),
    "rv_01" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_02" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_03" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_04" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_05" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_06" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_07" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_08" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_09" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_10" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_11" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    ),
    "rv_12" => Dict(
      "type" => "Violin",
      "position" => "right",
      "color" => "rgb(49,130,189)",
      "thickness" => 80,
      "hideName" => true
    )
  ),
  showSmpDendrogram = true,
  showVarDendrogram = true,
  title = "Heatmap with violin, pie, bar and categorical annotation tracks"
)
